Series

REC RB 5015 reverse-bayonet connectors

Rugged reverse-bayonet circular connectors compatible with VG95234 and commercial 5015-style equivalents.

REC RB connectors are the reverse-bayonet counterpart to the threaded RMS range. They are compatible with VG95234 connectors and with compatible commercial equivalents from manufacturers including Amphenol, Glenair and ITT Cannon.

A broad choice of accessories, contact arrangements and shell materials supports demanding applications. Copper-alloy solder or crimp contacts are available with silver or gold plating, alongside thermocouple contacts. Standard aluminium shells can be complemented by marine-bronze and stainless-steel options.
Contact termination Solder or crimp
Mating style Reverse bayonet
IP rating IP68 with PHM adapter
VG equivalent VG95234
MIL relationship 5015-style interface; MS310 specification covers threaded coupling
Shell materials Aluminium, marine bronze or stainless steel

Key features

  • Fast reverse-bayonet coupling
  • Compatible with VG95234 and commercial equivalents
  • IP68 protection with PHM adapter
  • Solder or crimp copper-alloy contacts
  • Silver, gold and thermocouple contact options
  • Aluminium, marine-bronze or stainless-steel shells
  • RoHS-compliant plating options

Shell styles

Plugs

RB3106 Straight plug

RB3106

Straight plug

Accessory thread
Yes
MIL equivalent
-

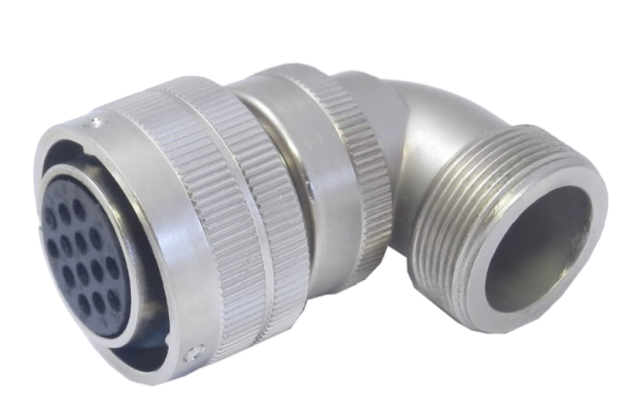

RB3108 90-degree plug

RB3108

90-degree plug

Accessory thread
Yes
MIL equivalent
-

Receptacles

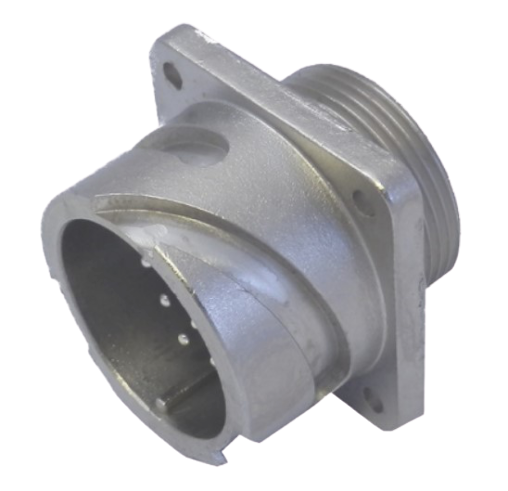

RB3100 Wall-mount receptacle

RB3100

Wall-mount receptacle

Accessory thread
Yes
MIL equivalent
-

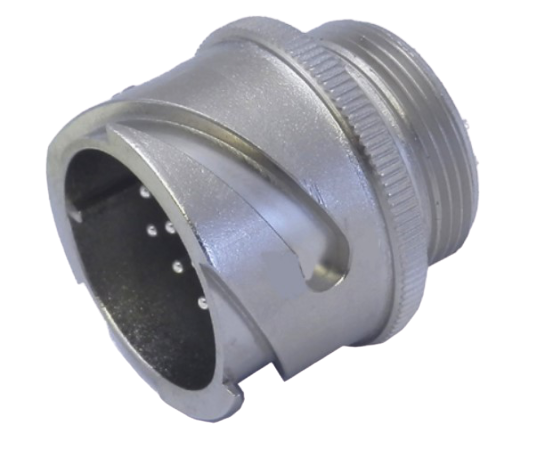

RB3101 In-line receptacle

RB3101

In-line receptacle

Accessory thread
Yes
MIL equivalent
-

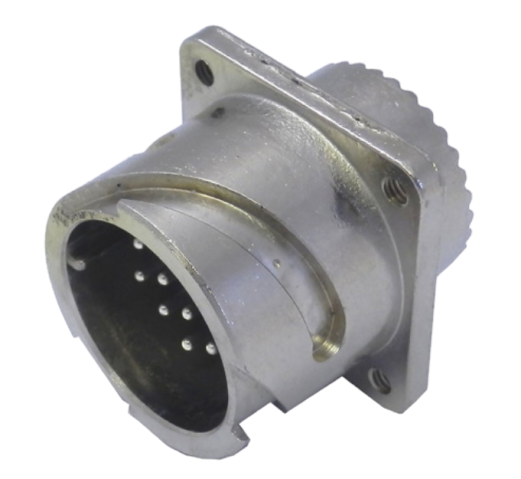

RB3102 Box-mount receptacle

RB3102

Box-mount receptacle

Accessory thread
No
MIL equivalent
-

Connector classes

Reference Connector class
A Includes a backshell for a cable clamp
F Includes an insulating grommet, backshell and class A MS3057 cable clamp
R Includes an insulating grommet and backshell for use with individual wires
CGM CGM cable clamp for shielded or unshielded cable; no grommet supplied
PHM Adapter for IP68 environmental sealing
Omitted Connector without backshell

Insert layouts

Arrangement Service rating Contacts Contact size
10S-2 A 1 16: 1
10SL-3 A 3 16: 3
10SL-4 A 2 16: 2
14S-2 Inst. 4 16: 4
14S-4 D 1 16: 1
14S-5 Inst. 5 16: 5
14S-6 Inst. 6 16: 6
14S-7 A 3 16: 3
14S-9 A 2 16: 2
16S-1 A 7 16: 7
16S-4 D 2 16: 2
16S-5 A 3 16: 3
16S-8 A 5 16: 5
16-9 A 4 12: 2, 16: 2
16-10 A 3 12: 3
16-11 A 2 12: 2
16-12 A 1 4: 1
16-13 A 2 12: 2
18-1 A/Inst. 10 16: 10
18-3 D 2 12: 2
18-4 D 4 16: 4
18-5 D 3 12: 2, 16: 1
18-8 A 8 12: 1, 16: 7
18-10 A 4 12: 4
18-11 A 5 12: 5
18-12 A 6 16: 6
20-3 D 3 12: 3
20-4 D 4 12: 4
20-7 D/A 8 16: 8
20-14 D 5 8: 2, 12: 3
20-15 A 7 12: 7
20-17 A 6 12: 5, 16: 1
20-18 A 9 12: 3, 16: 6
20-19 A 3 8: 3
20-23 A 2 8: 2
20-27 A 14 16: 14
20-29 A 17 16: 17
20-33 A 11 16: 11
22-2 D 3 8: 3
22-7 E 1 16: 1
22-9 E 3 12: 3
22-10 E 4 16: 4
22-14 A 19 16: 19
22-18 D/A 8 16: 8
22-19 A 14 16: 14
22-20 A 9 16: 9
22-22 A 4 8: 4
22-23 D/A 8 12: 8
22-33 D/A 7 16: 7
22-34 D 5 12: 3, 16: 2
24-2 D 7 12: 7
24-5 A 16 16: 16
24-9 A 2 4: 2
24-10 A 7 8: 7
24-11 A 9 8: 3, 12: 6
24-12 A 5 4: 2, 12: 3
24-22 D 4 8: 4
24-27 E 7 16: 7
24-28 Inst. 24 16: 24
28-3 E 3 8: 3
28-10 D/A 7 4: 2, 8: 2, 12: 3
28-11 A 22 12: 4, 16: 18
28-12 A 26 16: 26
28-15 A 35 16: 35
28-16 A 20 16: 20
28-18 C/D/A/Inst. 12 16: 12
28-20 A 14 12: 10, 16: 4
28-21 A 37 16: 37
28-22 D 6 4: 3, 16: 3

Platings

Reference Plating
Standard Cadmium olive drab
22 Cadmium-free zinc-cobalt plating, olive drab finish, RoHS compliant
23 Electrolytic nickel-plated hardware, RoHS compliant
24 Cadmium-free zinc-cobalt plating, black finish, RoHS compliant

RB

Applications

  • Military and defence equipment
  • Heavy industrial machinery
  • Transportation and mobile equipment
  • Harsh environments requiring secure rapid coupling
  • Applications requiring thermocouple contacts
