REC RK 18-10 connectors
MIL-C-5015-style circular connectors with IP67 protection and first-mate, last-break protective grounding.
REC RK 18-10 connectors are based on the MIL-C-5015 style and can mate with conventional compatible MS connectors. They combine a robust metal body with water, oil and dust protection for industrial machinery and demanding equipment.
A synthetic-rubber insert helps protect the receptacle with pin contacts even while unmated. The design conforms with relevant EN 60204-1 electrical machinery requirements and uses a UL 94 V-0 rigid plastic insert.
A synthetic-rubber insert helps protect the receptacle with pin contacts even while unmated. The design conforms with relevant EN 60204-1 electrical machinery requirements and uses a UL 94 V-0 rigid plastic insert.
Connector style
MIL-C-5015
Environmental protection
IP67 when mated
Safety reference
EN 60204-1
Insert material
UL 94 V-0 rigid plastic
Termination
Solder or crimp
Protective contact
First mate, last break
Key features
- MIL-C-5015-style interface
- Mates with compatible conventional MS connectors
- IP67 protection against water, oil and dust
- First-mate, last-break protective earth contact
- Anti-rotation and fixed mating position
- Solder or crimp contacts
- RoHS-compliant plating options
Straight or right-angle use
A single connector arrangement supports straight and right-angle cable routing, simplifying installation and stock requirements.

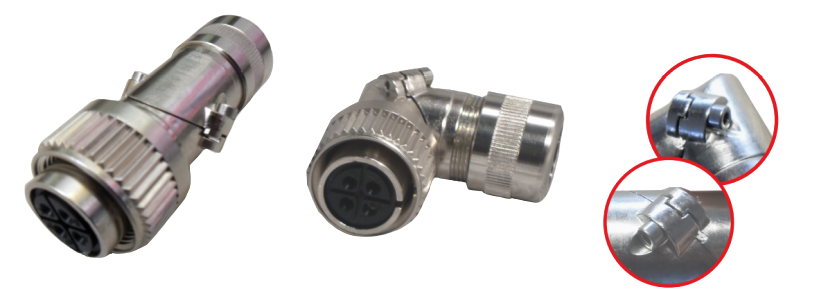

First mate, last break
A pre-mating grounding contact connects to the shell before the other contacts and disconnects last. An earth lug can also be attached to the metal body.
RK 18-10
Applications
- Industrial machinery
- Equipment exposed to cutting fluid, water or dust
- Protective-earth connection systems
- Straight and right-angle cable installations
