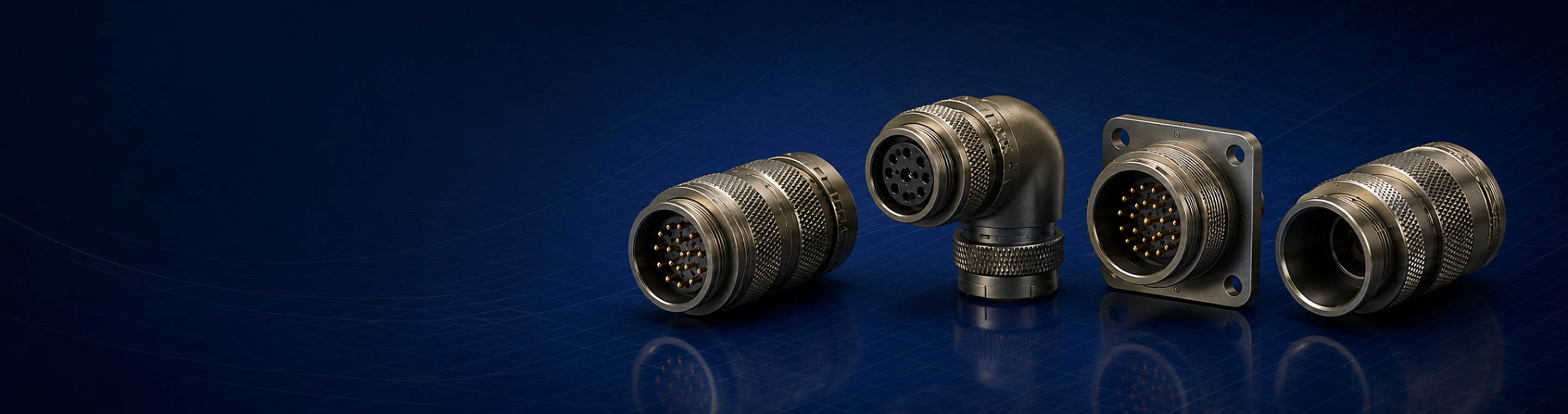

REC RMS series 5015 threaded connectors
MIL-C-5015 compatible threaded circular connectors for rugged industrial and defence applications.
Defence
Proven reliability
Industrial equipment
Built for performance
Power systems
Secure connections
Harsh environments
Engineered to endure
Rail
Rail industry
Welding
Welding industry
REC RMS 5015 threaded connectors are designed to be compatible and intermateable with MIL-C-5015 connectors, including MIL part numbers beginning MS310 and commercial equivalents from ITT Cannon, Amphenol, and other manufacturers.
The RMS threaded series is used where reliable circular connector performance, environmental protection, and established insert arrangements are required. The range supports solder or crimp copper alloy contacts with silver or gold plating, thermocouple contact options, and several plating choices including RoHS-compliant finishes.
The RMS threaded series is used where reliable circular connector performance, environmental protection, and established insert arrangements are required. The range supports solder or crimp copper alloy contacts with silver or gold plating, thermocouple contact options, and several plating choices including RoHS-compliant finishes.
Contact termination
Solder or crimp
Mating style
Threaded
IP rating
IP67 with PHM adapter
MIL equivalent
MS310
Key features
- Designed according to MIL-C-5015 requirements
- Compatible with MS310, CA310, 97310, and other commercial equivalents
- Threaded coupling for secure mating
- Solder or crimp contact termination
- Silver, gold, and thermocouple contact options
- RoHS-compliant plating options available
Shell styles
Plugs
RMS3106
Straight plug
- Accessory thread
- Yes
- MIL equivalent
- MS3106
RMS3108
90 degree plug
- Accessory thread
- Yes
- MIL equivalent
- MS3108
Receptacles
RMS3100
Wall mount receptacle
- Accessory thread
- Yes
- MIL equivalent
- MS3100
RMS3101
In-line receptacle
- Accessory thread
- Yes
- MIL equivalent
- MS3101
RMS3102
Box mount receptacle
- Accessory thread
- No
- MIL equivalent
- MS3102
Connector classes
| Reference | Connector class |
|---|---|
| A | Includes backshell for cable clamp. |
| AR | Insert and grommet with grommet nut. |
| F | Includes insulating grommet, backshell, and class A cable clamp MS3057. |
| GR | Includes wire sealing grommet and backshell with rotating clamp nut for heat shrink tubing. |
| R | Includes insulating grommet and backshell for use with individual wires. |
| A...CGM | Includes a CGM cable clamp for shielded or unshielded cables. No grommet supplied. |
| A...PG | Backshell for use with PG cable glands, not included. |
| A...M | Backshell for use with metric cable glands, not included. |
| Omitted | Connector without backshell. |
Platings
| Reference | Plating |
|---|---|
| Standard | Cadmium olive drab |
| 22 | Cadmium-free zinc-cobalt plating, olive drab finish |
| 23 | Electrolytic nickel plated hardware, RoHS compliant |
| 24 | Cadmium-free zinc-cobalt plating, black finish, RoHS compliant |
REC RMS
Applications
- Military equipment
- Industrial machinery
- Transport systems
- Electronic equipment requiring environmental protection
- Replacement and equivalent connector sourcing
